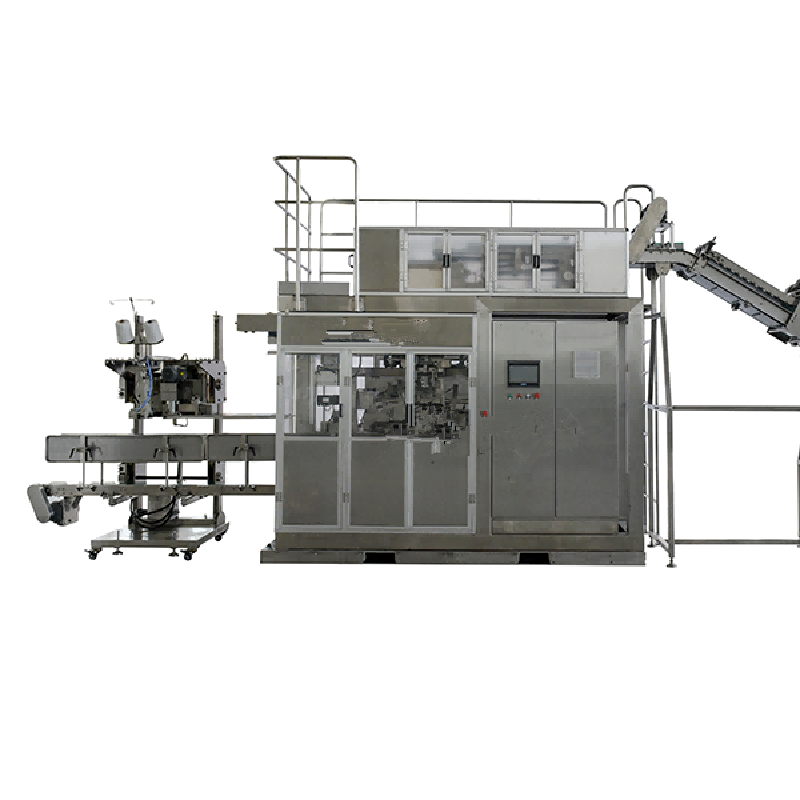

Servo-Driven Dual Belt Bag in Bag Packaging Machine with Stable Film Feeding

Servo-Driven Dual Belt Bag in Bag Packaging Machine with Stable Film Feeding

The Bag in Bag Packaging Machine integrates bag making, sealing, and printing into one compact unit, ensuring secure seals and an aesthetically pleasing finish. Constructed from 304 stainless steel, this packaging machine guarantees food-grade safety and is designed for easy cleaning and stable, simple operation.

Item No :
Bag in bag packaging machine
Payment :
TT,L/C
Product Origin :
China
Color :
N/A
Shipping Port :
Shanghai port
Lead Time :
30--60days
Weight :
900KG--1200kg
Order(MOQ) :
1

categories

New Products

Product Details

Servo-Driven Dual Belt Bag in Bag Packaging Machine with Stable Film Feeding

Technical Parameters

Model	VFS1300
Materials	SS304
Bag size range	Width :680mm max
Bag type	Pillow bag ,Gusset bag
Compressed air requirement	0.8Mpa,1000L/min 0.8 Mpa,
Power	4.5KW
Machine size	L2125W1750H2300mm
Machine size	L2125W1750H2300mm
Gross weight	900kg
HS code:	8422303090
Packaging speed：	Max packing 85-90 initial bags

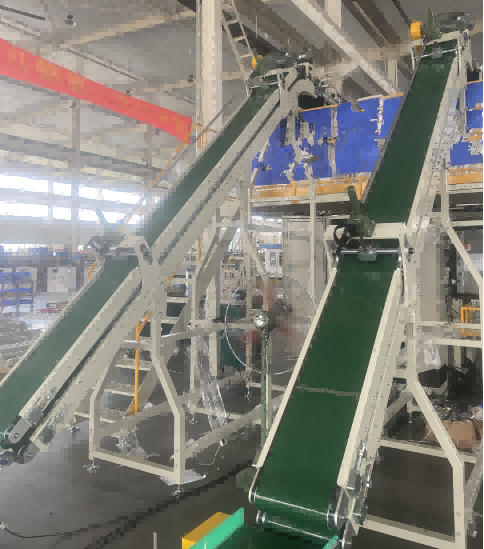

Double-deck climbing conveyer

Type	Standard
Materials	SS304

Function	Connect the transition conveyor from low to high position with adjustable clearance conveyor belt

Size	Base customer factory condition customization

Motor	SEW

Technical Features:

1.The packaging machine set bag making, sealing, cutting, printing and other functions in one, to ensure that the bag is firmly sealed, beautiful appearance;

The materials of machine are made of 304 stainless steel to ensure food safety;

2.The machine adopts double synchronous belt film, to ensure that the film is smooth when working, the package material is not easy to deform, run off, the film is driven by servo motor, to ensure the stability of the bag length when packaging;

3. The machine runs stably, the operation is simple, the structure is simple, the appearance is beautiful, the cleaning and maintenance is convenient.

Anti-overlap mechanism

The system aims to use heating wires for instantaneous heating for excellent sealing, Preventing a falling initial bag from hitting and bursting the bag.

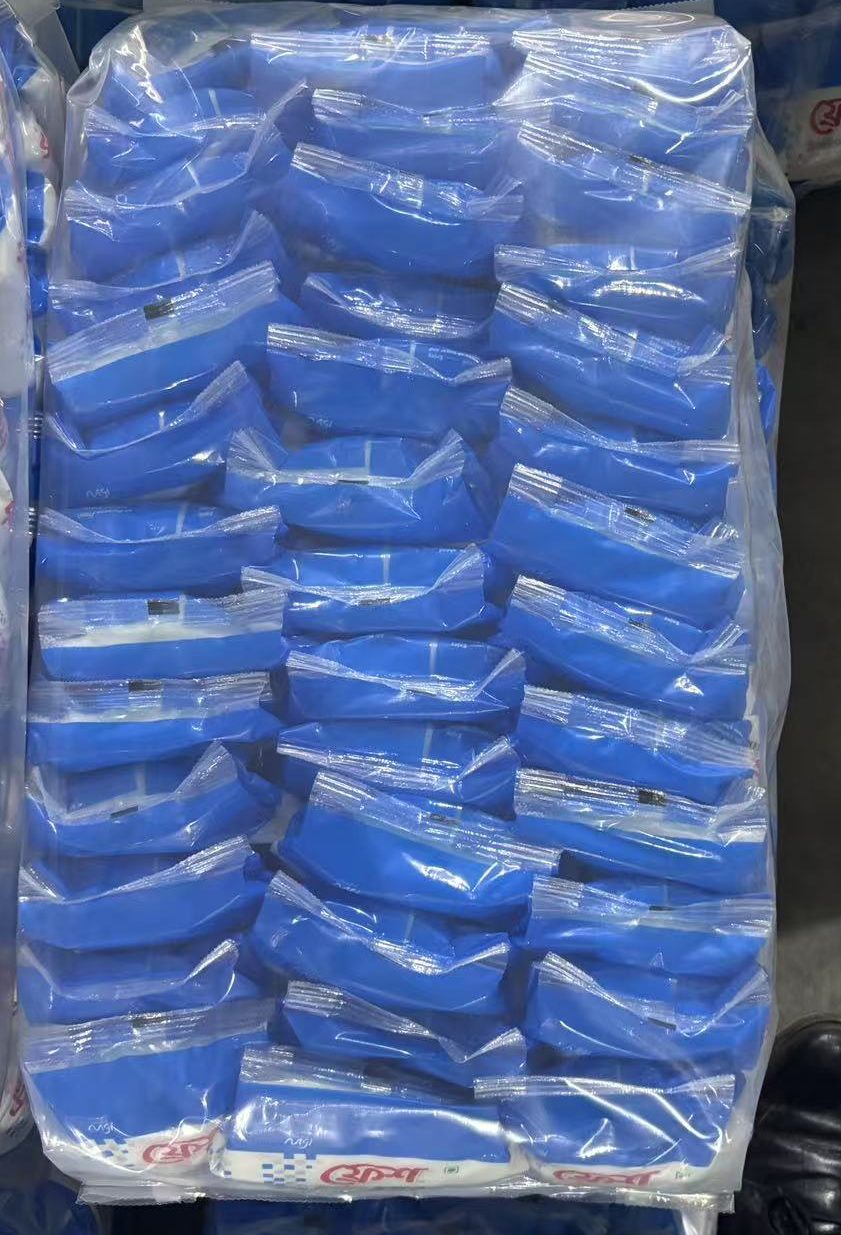

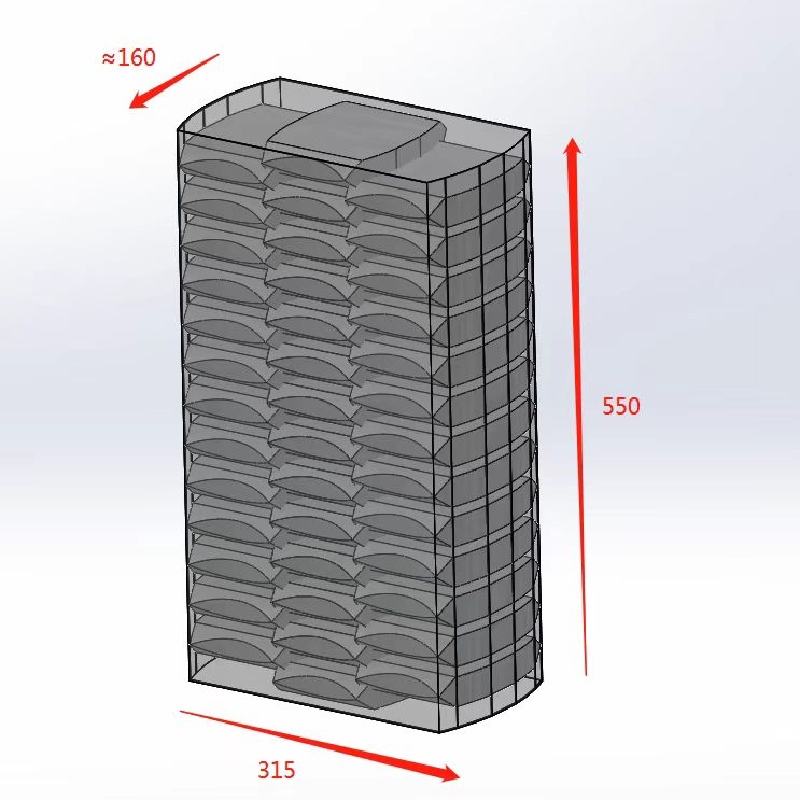

Bag in bag packaging samples

Why Choose us

Easy to Operate
The machine features an intuitive touchscreen interface that allows new operators to learn quickly.
Technical Support
Our dedicated technical support team is available to assist you remotely or on-site, ensuring minimal production downtime.
Low Maintenance Costs
Designed with robust components and a simplified mechanical structure, this machine requires minimal routine maintenance.

One-stop Service

Pre-sale Service

Equipment model selection;
According to the special requirements of customers, personalized customized products;
Train technicians for customers free of charge;
Free professional technical engineers to plan the site on site and design the best process and plan.
Acceptance of the product;
Assist the client in drafting the construction plan;

Medium-sales Services
Yuanxin have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Service

One Year Warranty: As long as there is a non-human fault in a year,free re-placement parts.
Parts Replacement: Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
Engineer Asssignment: Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
Online Instruction: We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
Feedback Survey: The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
