This machine consists of an automatic feeding system (screw elevator), automatic metering system (screw feeder, screw scale), machine frame with platform guardrails and ladder, automatic form-fill-seal packaging machine, packaged product conveyor, and hot inkjet printer. It integrates multiple functions including automatic feeding, metering, bag forming, filling, sealing, cutting, printing and counting into one complete system.
VFS Series Fully Automatic Powder Form-Fill-Seal Packaging Machine
Technical Parameters
| Model | VFSL2000 | VFSL5000D | VFSL5000F | VFSL7300B |
| Packaging Range | 5g—200g | 200g—1000g | 500g—2500g | 1000g—5000g |
| Speed | 30—70 bags/min | 20—60 bags/min | 20—50 bags/min | 10—50 bags/min |
| Accuracy | ±0.5% (varies by material properties, powder density, mixture ratio, etc.) | |||
| Bag Types | Pillow bag (back seal), hanging hole bag, gusseted bag, box-shaped bag, four-side seal bag, envelope bag. | |||
| Max Film Width | 320mm | 420mm | 540mm | 730mm |
| L：40～190mm | L：80～300mm | L：100～350mm | L：100～460mm | |
| Bag Dimensions | W:40～150mm | W:80～200mm | W:100～255mm | W:100～350mm |
| Max Material Roll OD | Φ300mm | φ400mm | φ500mm | φ500mm |
| Core ID | Φ30mm | φ75mm | φ75mm | Φ75mm |
| Air Consumption | 6-8kgf/cm³，0.30m³/min | 6-8kgf/cm³，0.60m³/min | ||
| Power Supply | AC380V±10%、50-60HZ | AC380V±10%、50-60HZ | ||
Scope of application
Food & Pharmaceutical Industry: Instant fruit drink mix, milk powder, milk tea powder, soybean powder, starch, flour, food additives, seasoning powder, medicinal powder, etc.
Agricultural Chemical & Industrial Industry: Chemical powder, toner powder, carbon black, pesticide powder, salt-based powder, cement, waterproof materials, etc.
Plastics, Pharmaceutical, Grain and other powder material industries.
Why Choose us
Easy to Operate
Technical Support
Low Maintenance Costs
One-stop Service
Pre-sale Service
Medium-sales Services
Yuanxin have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Service
Machine detials

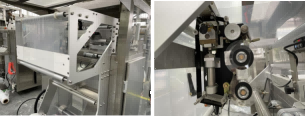

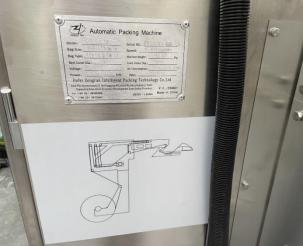

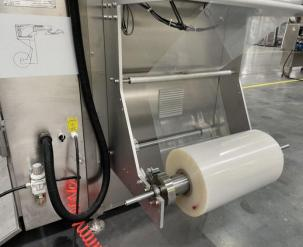

Film unwinding ↑ Film transfer diagram ↑
Film tensioning bar ↑ Code printer inkjet ribbon type ↑
Eyemark sensor ↑ Encoder ↑

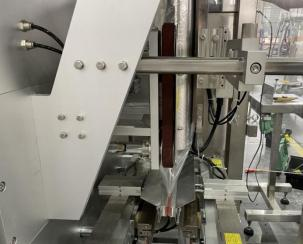

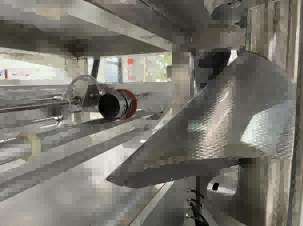

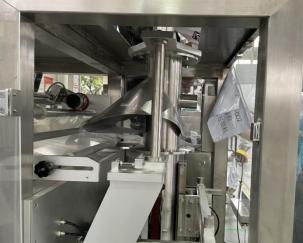

Bag former ↑ Longitude sealer↑

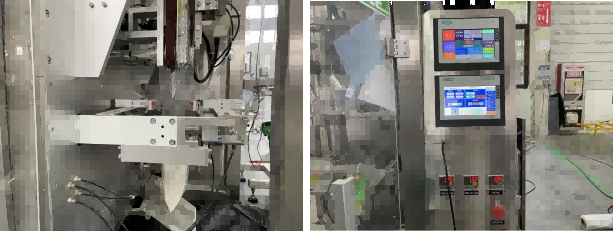

Horizontal sealer ↑ HMI for weigher &VFS5000B bagging machine↑
This machine consists of an automatic feeding system (screw elevator), automatic metering system (screw feeder, screw scale), machine frame with platform guardrails and ladder, automatic form-fill-seal packaging machine, packaged product conveyor, and hot inkjet printer. It integrates multiple functions including automatic feeding, metering, bag forming, filling, sealing, cutting, printing and counting into one complete system.
