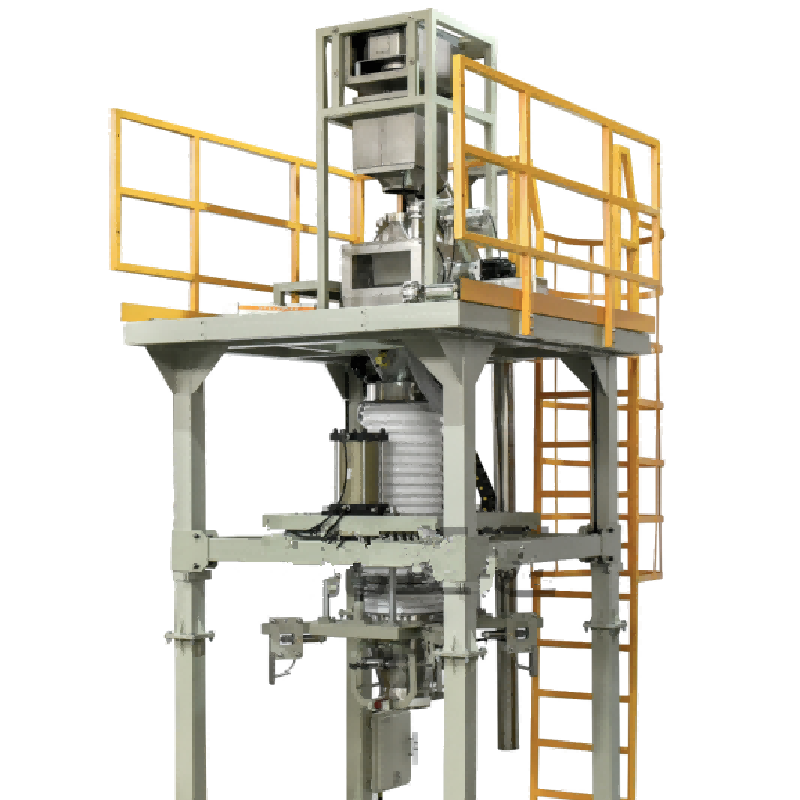

This High-speed Jumbo Bag Filling Machine is engineered for high-speed operations and boasts a sturdy construction for long-term durability. It delivers high reliability and the highest weighing accuracy, ensuring consistent performance for bulk material handling.
Payment :
T/T ,LCProduct Origin :
ChinaColor :
N/AShipping Port :
Shanghai portLead Time :
30 daysHigh-speed Jumbo Bag Filling Machine
Technical Parameters
|
Machine model |
YX005 |
|
Weighing range |
500——2000kg |
|
Filling capacity |
4-20 bags/hour |
|
Weighing accuracy |
±2-3%% |
|
Bag sealing type |
Manual sealing |
|
Dust collecting design |
2 dust collect holes at discharging pipe for connecting with dust collector |
|
Air supply |
0.5-0.7MPa. Air consumption :2 m/h |
|
Power supply |
AC380V, 50Hz, 3P |
Product Function
Flexible Configuration for Diverse Needs:

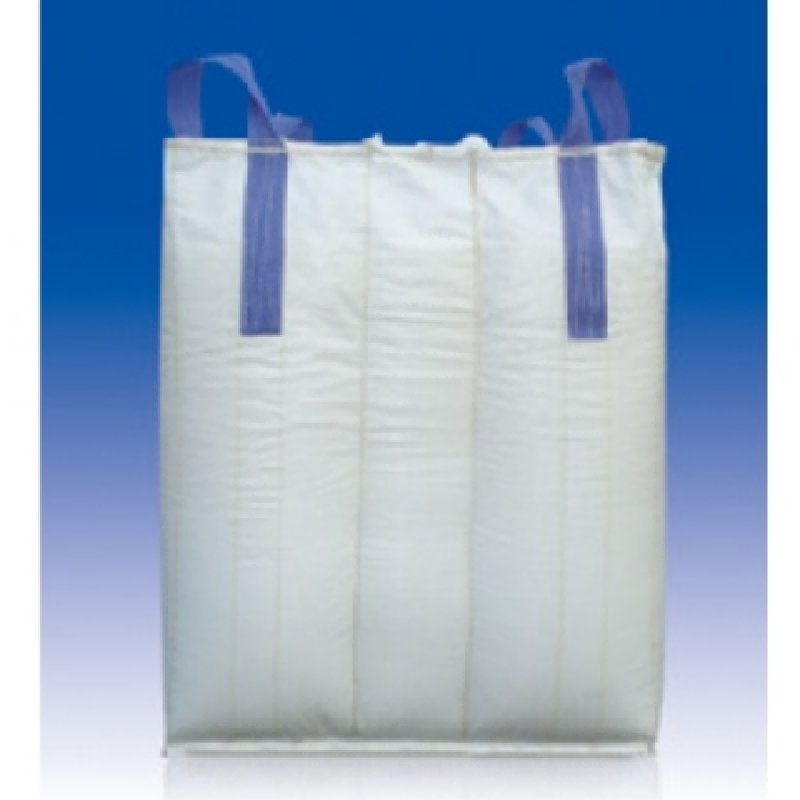

This High-speed Jumbo Bag Filling Machine is designed to handle various Big Bag (FIBC) configurations, accommodating bags with one, two, or four loops. With a filling capacity ranging from 500 kg to 1500 kg per bag, it offers versatile solutions for different production requirements across industries such as chemicals, fertilizers, and food processing.
Precision Gross Weighing System:
As a gross weighing type system, this machine measures the total weight of both the product and the bag during the filling process. The incorporation of high-accuracy Mettler Toledo load cells ensures exceptional weighing precision, maintaining strict weight control and minimizing product giveaway. This reliable weighing mechanism guarantees consistent performance and compliance with quality standards.
Robust Construction and Operational Safety
Built with durable materials and sturdy framework, the machine withstands demanding industrial environments while ensuring operational stability. The design includes essential safety features such as integrated dust control systems and secure bag attachment mechanisms, creating a safer working environment for operators throughout the filling process.
Enhanced Efficiency with Optional Accessories
The machine's functionality can be extended through various optional accessories to match specific operational needs. Available additions include magnetic separators for impurity removal, trolley and rail systems for bag positioning, and outfeed roller conveyors for streamlined material handling. These options help optimize workflow efficiency and adapt the equipment to different production layouts.
Why Choose us
Easy to Operate
Technical Support
Low Maintenance Costs
One-stop Service
Pre-sale Service
Medium-sales Services
Yuanxin have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Service
High-performance robotic palletizer, always provide customers with customized product palletizing solutions by support of Yuanxin's advanced technology , We use different robot models and grippers according to customer specified needs. Selection and editing of pallet patterns can be easily performed via the touch screen. Responsive remote service helps customers resolve issues such as program upgrades, troubleshooting or adding new pallet pattern program without having to send an engineer to the customer site.
