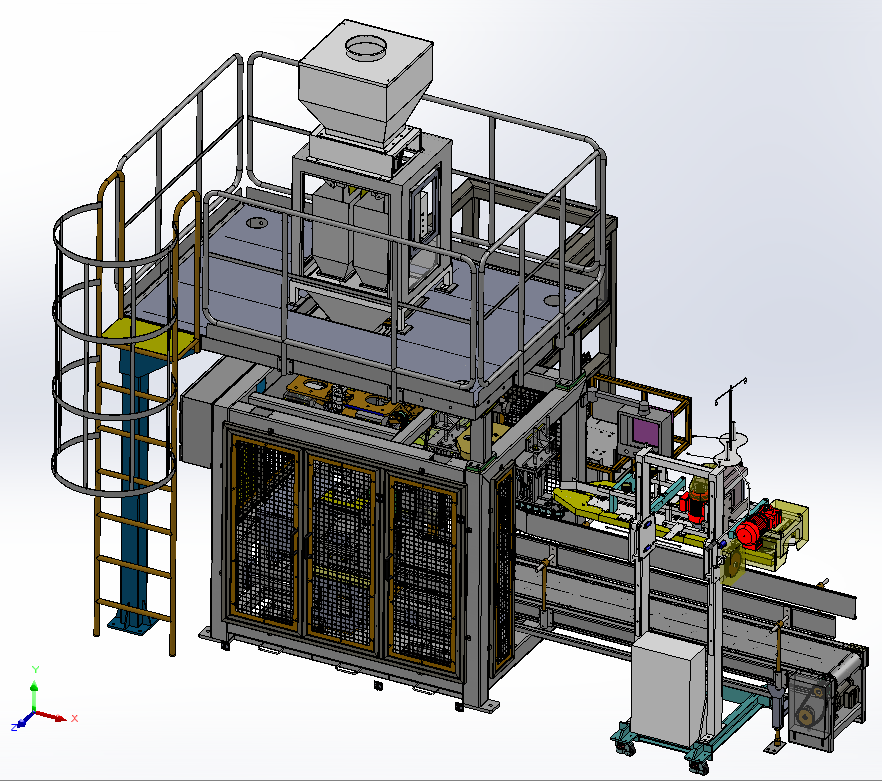

The Automatic Open Mouth Bagging Machine YXCFGK-G is designed for reliable bag filling and sewing of PP/PE open-mouth bags with stable performance. It supports bag sizes up to 950 mm in length and delivers up to 3000 bags per day with ±0.2%–0.5% weighing accuracy. This bagging system is suitable for industrial applications requiring efficiency and durability.
Technical Parameters
|
Section |
Items |
Specification |
|
Mechanical data |
Machine dimension（L*W*H) |
3000*2000*1930mm（main body） |
|
|
Machine weight |
4000kg |
|
|
Machine material |
Contact parts SS304+Carbon steel structure |
|
|
Bag size |
L(650-950)xW(460-560)mm |
|
|
Bag type |
Flat open mouth bag/M edge bags |
|
|
Bag material |
PP/PE |
|
|
Sealing process |
Sewing |
|
|
Ambient temp. |
-10℃~35℃ |
|
|
IP grade |
IP56 |
|
Electrical data |
Power supply |
AC380V±10% |
|
|
Frequency |
50/60Hz |
|
|
Power consuption |
10kW |
|
|
Compressed air |
0.5~0.7Mpa |
|
|
Air consumption |
≤1200L/min |
|
Performance date |
Packing speed |
3000bags per day |
|
|
Weighing accuracy |
+/-0.2%~0.5%, 2σ |
Application
The YXGFCK-G is a fully automatic bagging machine with a production capacity of up to 800 bags per hour, ideal for the automatic packaging of granular materials with good fluidity，weighing range from 10-50kg.
This machine is ideal for all those who want to move from manual/semi-automatic bagging to fully automatic bagging and/or require low capacity. Its compact size allow the machine installed in any existing production area.
Working process
| Bag preparation |
|
↓ |
| bag pickup |
| ↓ |
| delivery and pre-opening |
| ↓ |
| bag feed by manipulator |
| ↓ |
| bag clamping and opening |
| ↓ |
| bag supporting |
| ↓ |
| filling |
| ↓ |
| bag holding |
| ↓ |
| seal guiding |
| ↓ |
| stitching and conveying |
Customer case
OUR SERVICE
Pre-sale Service
1. Equipment model selection;
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
5. Acceptance of the product;
6. Assist the client in drafting the construction plan;
Medium-sales Services
Xuanyin have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Service
1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
